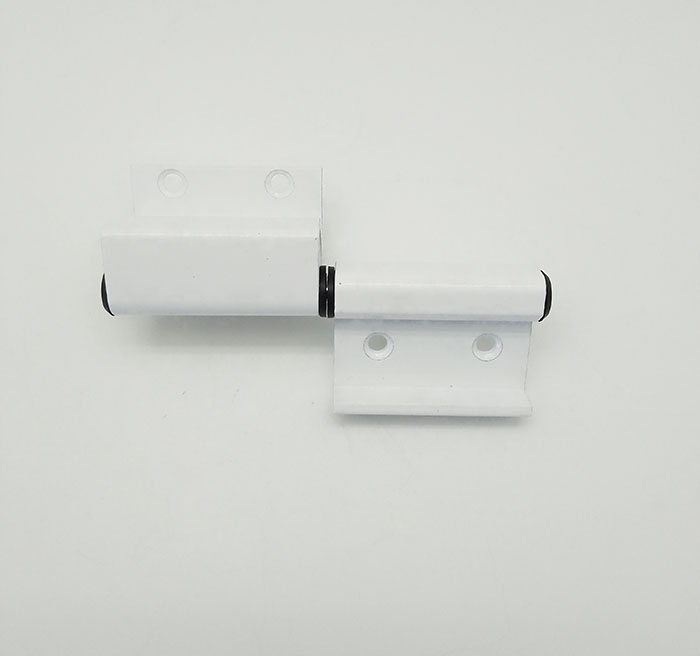

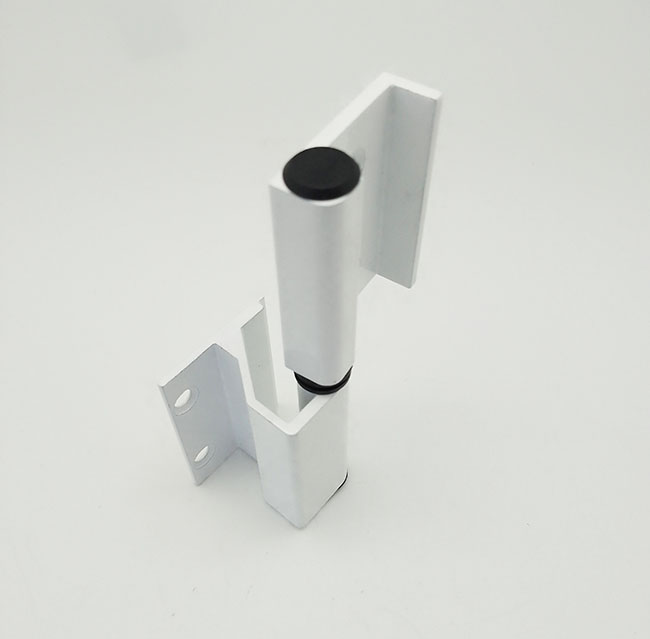

360 Degree Hinge Aluminum Movable Color White Cream Black Hinge
Window And Door Hinge
Quick Details
Warranty: 5 years
After-sale Service:Online technical support
Project Solution Capability:graphic design, 3D model design
Application: Office Building
Design Style: Modern
Place of Origin: Guangdong, China
Brand Name: HANZSON
Type: hinge
Name: Door and Window hange
Color: Customized Accepted
Installed in the left and right direction.No need to slotting.
Intelligent fixed, functional connection, buffer anti-collision,
mute closed, easy to install.
It has hydraulic, three-speed buffering and shock absorption
functions to prevent the door damage, noise and unintentional pinch
caused by heavy wind blowing.
With a unique three-speed function, the door is soft and the lock
is smooth and strong.
Not easy to leak oil, stable performance, long service life.
Easy to install , safe to use and delicate.
Packaging & Delivery
Selling Units:Single item
Single package size: 15X5X5 cm
Single gross weight:0.200 kg
Package Type:50pcs per box,200pcs per carton.shipping marks is
welcome
Lead Time:
| Quantity(Pieces) | 1 - 1000 | 1001 - 10000 | 10001 - 30000 | >30000 |
| Est. Time(days) | 10 | 20 | 30 | To be negotiated |
Product Description
| Size | 6 Inch |
| Model | 360 Degree Hinge Aluminum Movable Color White Cream Black Hinge
Window And Door Hinge |
| Weight capacity | ≤20kg/pcs |
| Door width | ≤1200mm |
| Service life | More than 500000 times |
| Size | 157x36xΦ24 |
| Materials | Space Aluminum, 304 Stainless Steel |
| Surface treatment | Sliver, Gold, Black, Green, bronzer, Red bronze.
And the thickness of sheet is 3.5mm. |
| Slotting method | 140mm×36mm×4mm(door and door frame both with 4mm depth groove ,or
only door with 8mm depth groove) |
| Opening direction | Opening in one direction, maximum angle 160°. |
| Temperature | (-20°C)-40°C |
| Applications | Hotel , home, office building and other kind of fire door, wooden
door, aluminum door and other indoor doors. |
| Speed control | The closing force on the upper end and closing speed on the lower
end can be adjusted freely. |
| Function | With hydraulic,three-speed buffer,shock absorption
function,Optional >85°positioning function and 160°automatic
function |
